Cargo & Ballast Control System

Product Cargo & Ballast Control System

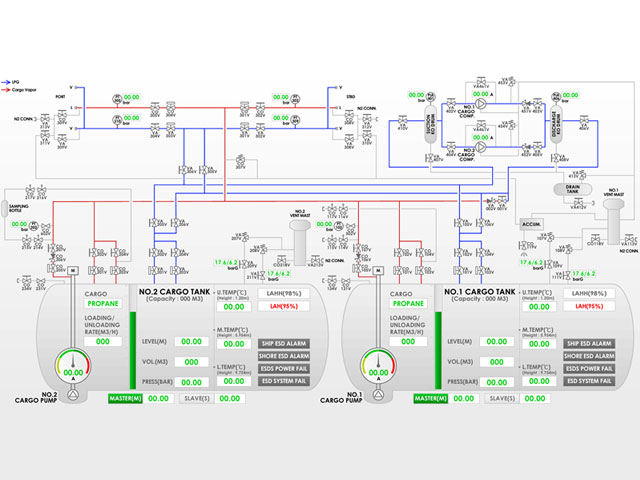

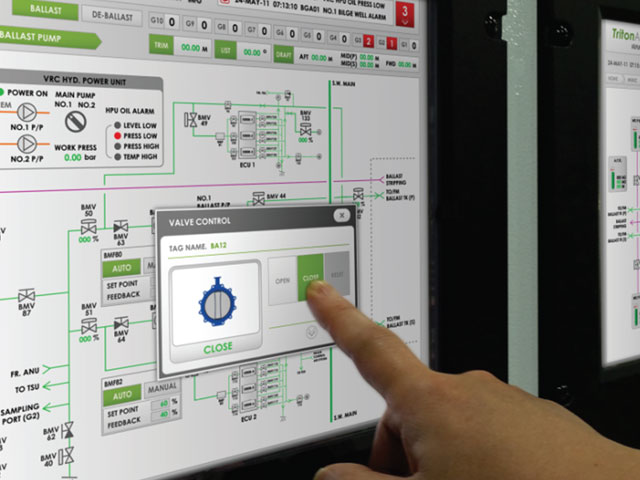

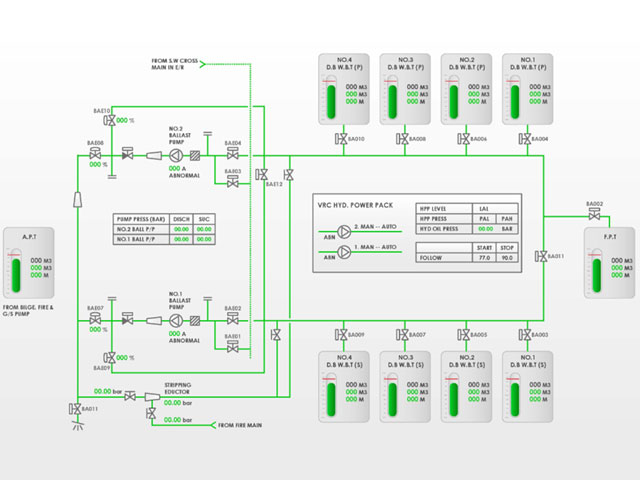

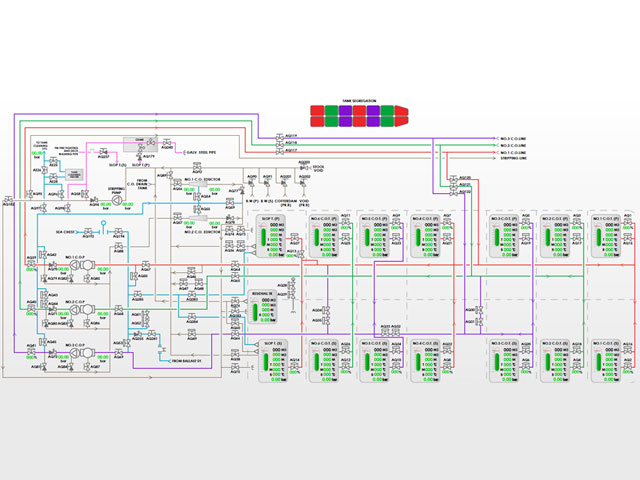

The Cargo/Ballast Control System is a subsystem of ICMS that performs tank monitoring, valve/pump remote control and ballast water flow control on a monitor screen consisting of a graphical mimic of the ship's piping diagrams on a computer workstation in the cargo control room.

The system remotely controls pumps and valves for ship cargo/ballast operation and remotely monitors cargo/ballast tank levels.

This monitoring and control is implemented through I/O modules or communication for various signal types.

System Configuration

  • System Configuration
  • System Configuration
  • System Configuration
  • System Configuration

Product Features

  • The features of tank monitoring include;
    Level correction
    Draft, trim/list correction
    Volume calculation
    Tank level, volume, fill percentage indication
    Alarm display of tank level, temperature, pressure
    Adjust alarm parameter
    Alarm limit adjust
  • The features of valve remote control include;
    Single acting and double acting valve control
    Throttle valve control
    Use one combi module for one valve
    Remote/local control mode select on combi module
  • The features of pump remote control include;
    One way pump/fan control
    Two way pump/fan control
    Speed pump control
    Pump pressure and ampere display
    Use one combi module for one pump
    Remote/local control mode select on combi module

Applications

  • Cargo control system
  • Ballast control system
  • Anti-heeling control system
  • Ballast water management system
  • Bilge control system
  • Manifold pressure monitoring system
  • Others
